🔥🔥50% off-Universal Wire Connector Terminal Block For Fast Wiring
SAVE TIME AND COSTS WITH OUR INSTALLATION TERMINAL BLOCKS AND CONNECTORS
Still, using electrical tapes & unsafe wiring connections..?
- Pull the lever up, insert a conductor and push the lever back down – done. Always connected solid, stranded and fine-stranded conductors easily, quickly and safely.
- This connector is ready for more and can prove it: now connects conductor cross sections from 28–14 AWG for greater versatility.
- Increase efficiency in installation without compromising on safety. Reduce connection times for solid wires and those with crimped on wire-end ferrules by up to 70 % compared to clamping yoke terminals.

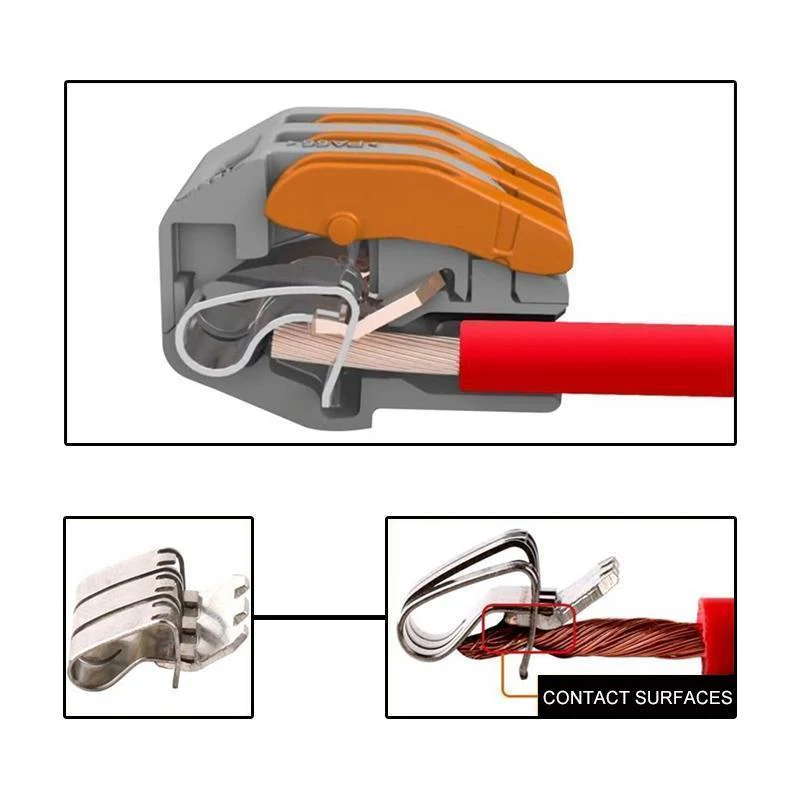

- The conductor is simply inserted in the clamping unit to get a safe, gas-tight connection. Even flexible conductors can be connected without tools and trouble.
BENEFITS
- Easily terminate conductors up to 2.5 mm^2 (14 AWG)

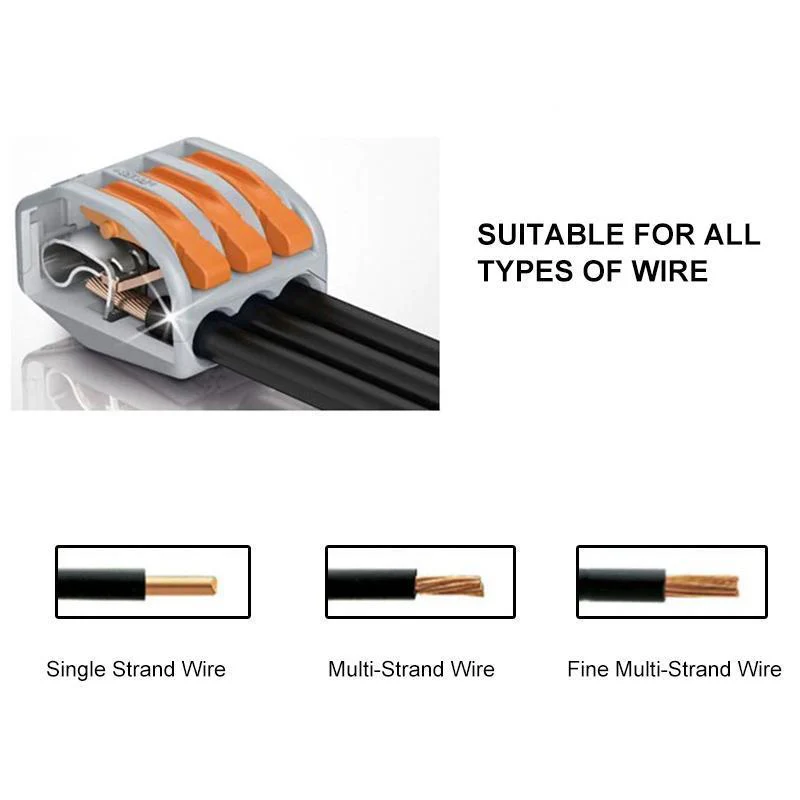

- Connect solid, stranded and fine-stranded conductors
- Time savings for installers and device manufacturers
- Quickly install devices with higher levels of power consumption
- Safely install long cable runs with larger conductor cross sections

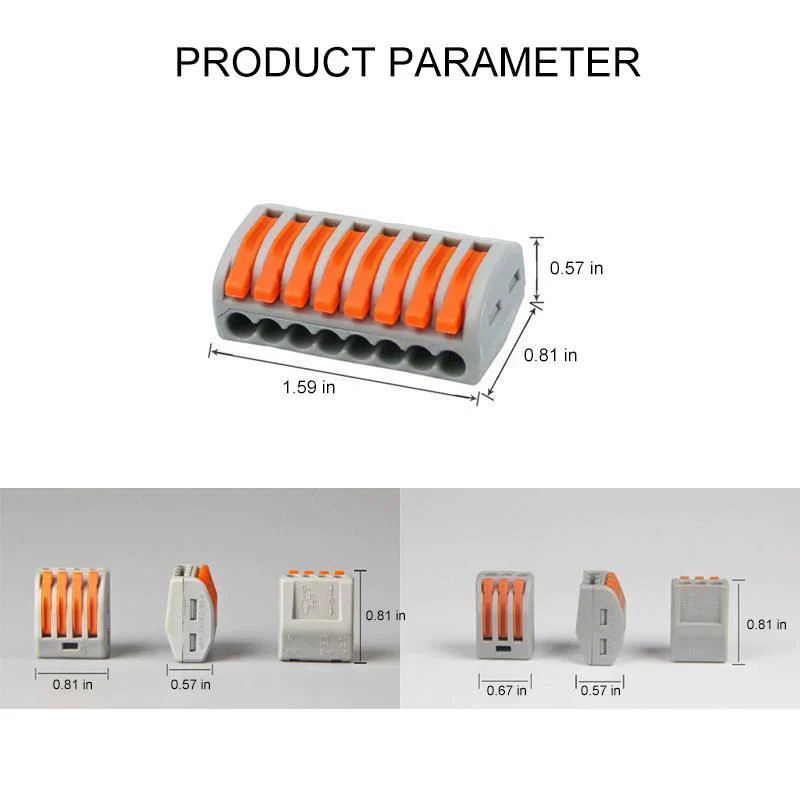

SPECIFICATIONS:
-

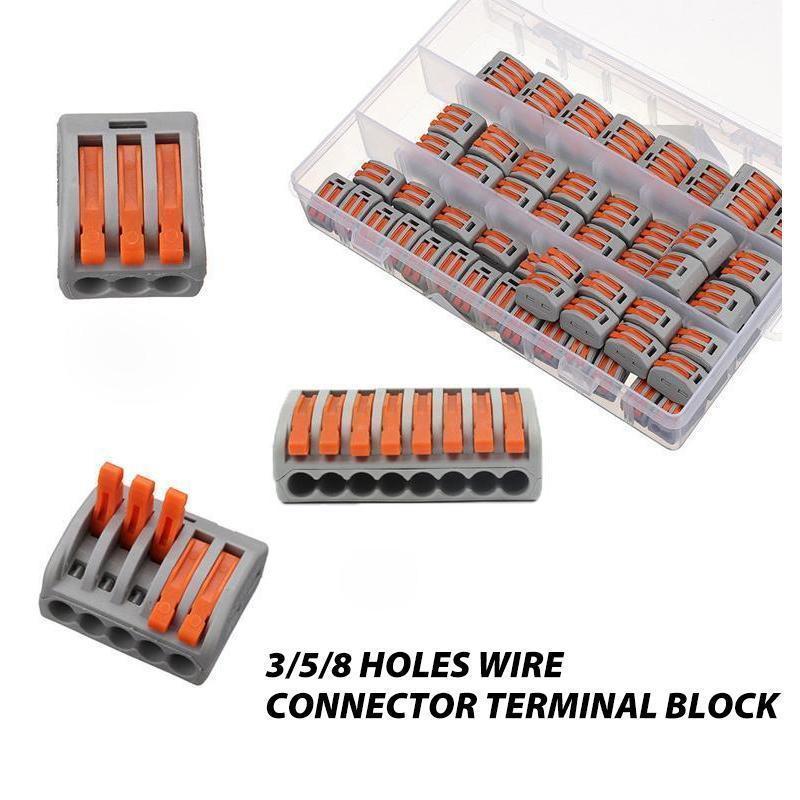

Number of Channels: 3-digit / 5-digit / 8-digit
-
Rated Voltage: 250 V
-
Rated Current: 20 A
-

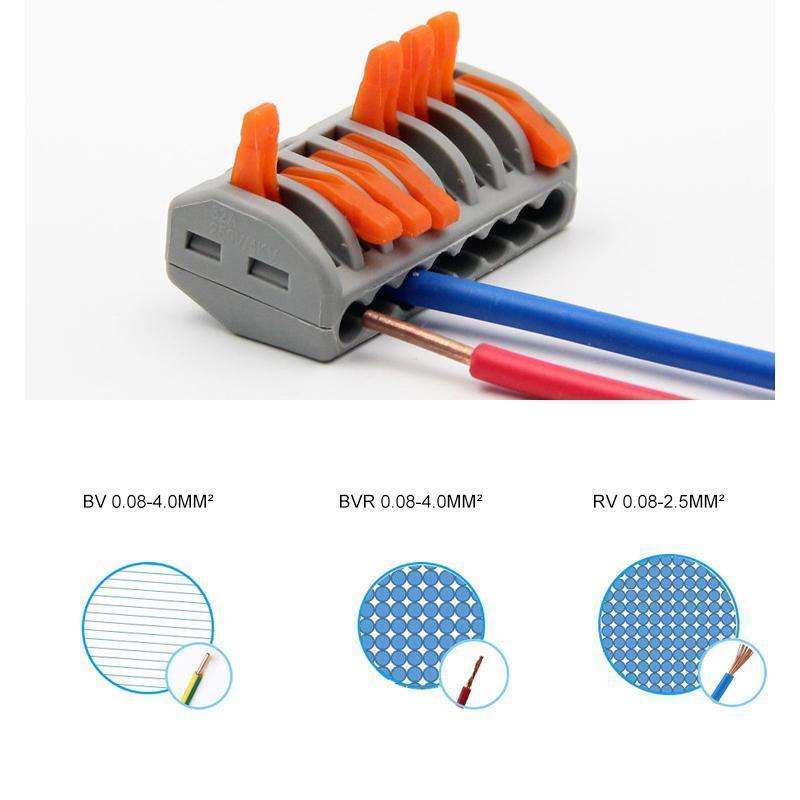

Cross Section Range of Connectable Wire: 0.75-2.5 mm²
-
Available Wire Cross Section Range: 18-12 AWG
-
Color: Gray
-
Wiring Method: Plug-in
-
Wiring Direction: Front
-
Pollution Degree: 2

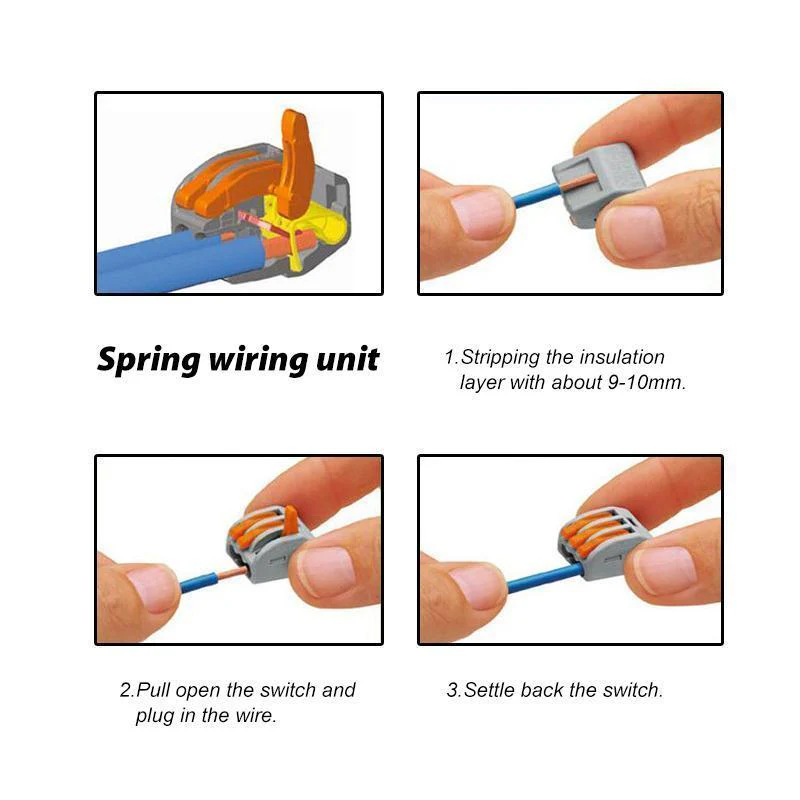

WIRING METHOD:
-
Stripped single core and stranded wire insulation 9 - 11 mm.
-

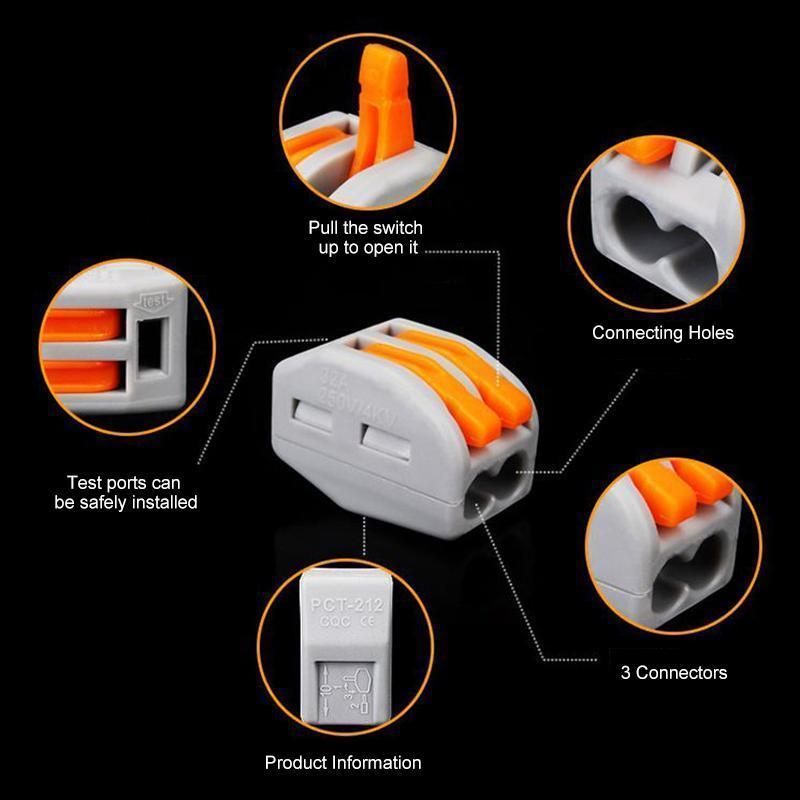

Move the orange lever up with your thumb and open the spring.
-
Pass the wire through the spring opening.
-
When the orange pressure bar is pressed, the wire is automatically clamped.
WIRE REMOVAL METHOD:
- After pushing the orange bar up with your thumb, you can remove the wire.
NOTES:
-
Please allow slight measurement deviations due to manual measurements.
-
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed in the pictures.
PACKAGE INCLUDED:
- 10 PCS Universal Wire Connector Terminal Block
Original: $11.99
-70%$11.99
$3.60Product Information
